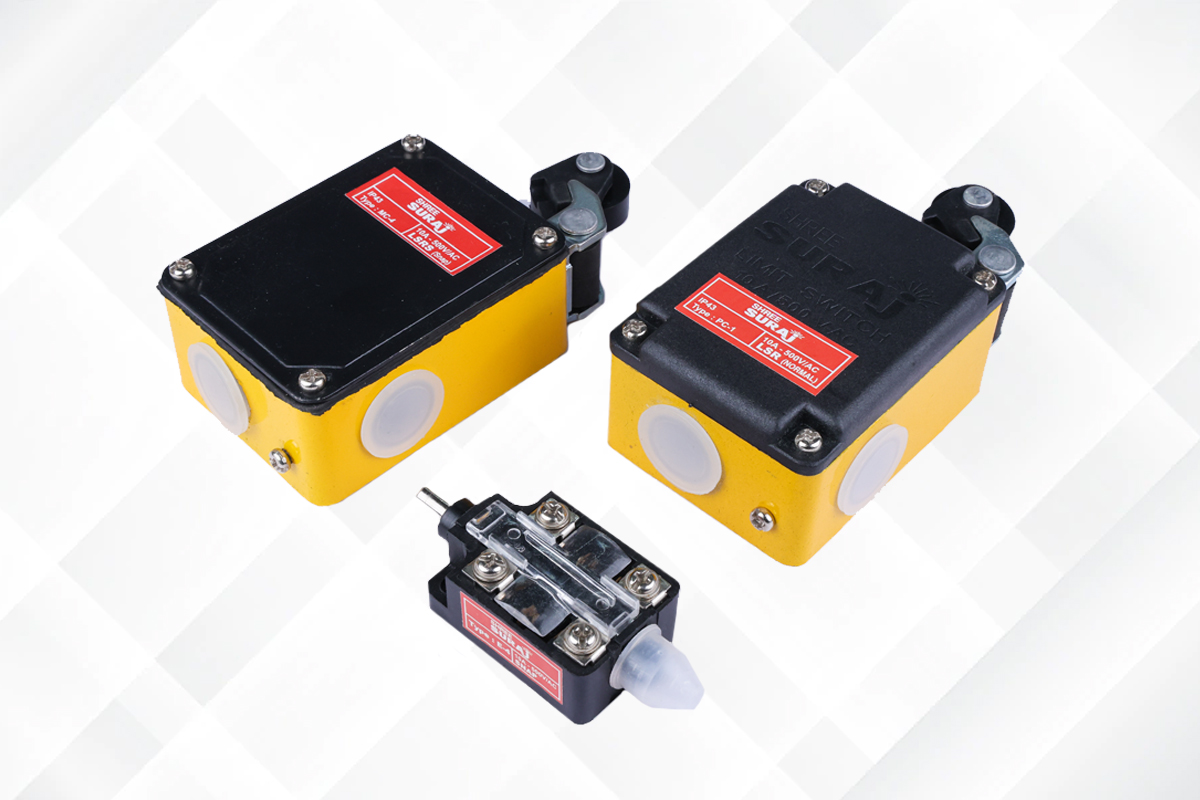

Limit Switches Introduction :

To transform a mechanical motion into an electrical control signal, SURAJ Limit Switches were specifically created. The dust-proof cover on the switch element extends the switch's lifespan. Polybutylene Terephthalate (PBT) of electrical grade makes up the element's housing. The contacts are made of silver bimetal, and the conductors and terminals are composed of copper alloy.

Limit switches are electromechanical devices that detect the presence or position of objects in industrial systems. They consist of an actuator, typically a lever, button, or roller, and a set of electrical contacts. When an object comes into contact with the actuator, it changes the state of these contacts, sending a signal to control machinery or stop motion. They’re critical in settings where precision, repeatability, and safety are necessary, especially for controlling movements and preventing machinery from operating beyond safe limits.

Limit Switches Technical Specifications:

  • Operations : NO+NC
  • Actions : Normal and SNAP
  • Housing material for element : High grade Polybutylene Terephthalate (PBT)
  • Housing material for the limit switch : Powder coated Aluminium Die casting.
  • Rated operating voltage : 250 V. AC
  • Rated and uninterrupted current : 10A
  • Ambient temperature : -10°C to 55°C
  • Rated operating frequency : 50 Hz/60 Hz
  • Rated impulse voltage : 2 Kv for one minute
  • Insulation resistance : >20 Mega Ω
  • Contact Resistance : <20 milli Ω
  • Mechanical Life : 20,000 operations
  • Contacts : Silver Bimetal / Copper
  • Aluminium Housing Shade : Yellow; can be customised to customer’s requirement
  • Terminations : Copper Alloy with Zinc Coated High Tensile Mild Steel Screws.


Use of Limit Switches :

Limit switches are widely used in various industrial and mechanical applications to detect positions, control movements, and improve safety. Limit switches are highly reliable, especially in settings with high movement or harsh environments, making them essential for precise control and safety across many applications.

1. Position Sensing in Industrial Machinery : Limit switches help control the position of machine components by stopping or starting specific functions when a part reaches a designated point. This is especially common in automated production lines, where limit switches ensure each part is in the correct place before the next process starts.

2. Safety and Emergency Stops : Limit switches are often used as safety devices in machinery, acting as an emergency stop if an object or person interferes with normal operation. When triggered, they can immediately shut down equipment to prevent accidents.

3. Conveyor Systems : In conveyor belts and material handling, limit switches detect the presence or position of items on the belt. They can trigger the belt to start, stop, or change direction, ensuring that objects don’t pile up or get damaged.

4. Robotics and Automation : Limit switches help in defining boundaries and stopping points for robotic arms or automated machinery, ensuring precise movements and repeatability. They’re also used to detect when robots reach the end of their range or when an object is positioned correctly for further processing.

5. Lifts and Elevators : Limit switches control the movement of lifts, ensuring they stop at the correct floor levels and open doors only when it’s safe. They are also used as final-limit switches to prevent over-travel and potential accidents. .



Types of Limit Switches

Limit switches come in various types, each suited for different applications and environments. They vary in their actuator designs, construction, and intended use. These types cater to specific needs in automation, safety, and control, making them highly adaptable across industries from automotive and manufacturing to food processing and robotics.

Lever Actuated Limit Switch : Has a lever arm, sometimes with a roller, which is moved by the contacting object. Used in conveyor belts, packaging, and machinery to detect the presence or position of moving parts.

Plunger or Push Button Limit Switch : Features a spring-loaded plunger or button that the object directly pushes to activate. Common in assembly lines and automated machinery for precise position sensing.

Roller Plunger Limit Switch : Combines a plunger with a roller on the end, allowing smoother activation by objects moving laterally. Useful for applications where the object moves along a horizontal plane, such as in conveyor systems.

Wobble Stick or Whisker Limit Switch : Has a flexible arm, often resembling a whisker or stick, which activates the switch when deflected by an object. Used in settings where objects may come from various angles, like detecting jammed parts on conveyor belts.

Rotary or Adjustable Lever Limit Switch : Contains an adjustable lever arm that can be rotated to control the angle at which it makes contact with the object. Ideal for applications requiring flexibility in installation, such as controlling large machinery with varying contact points.
