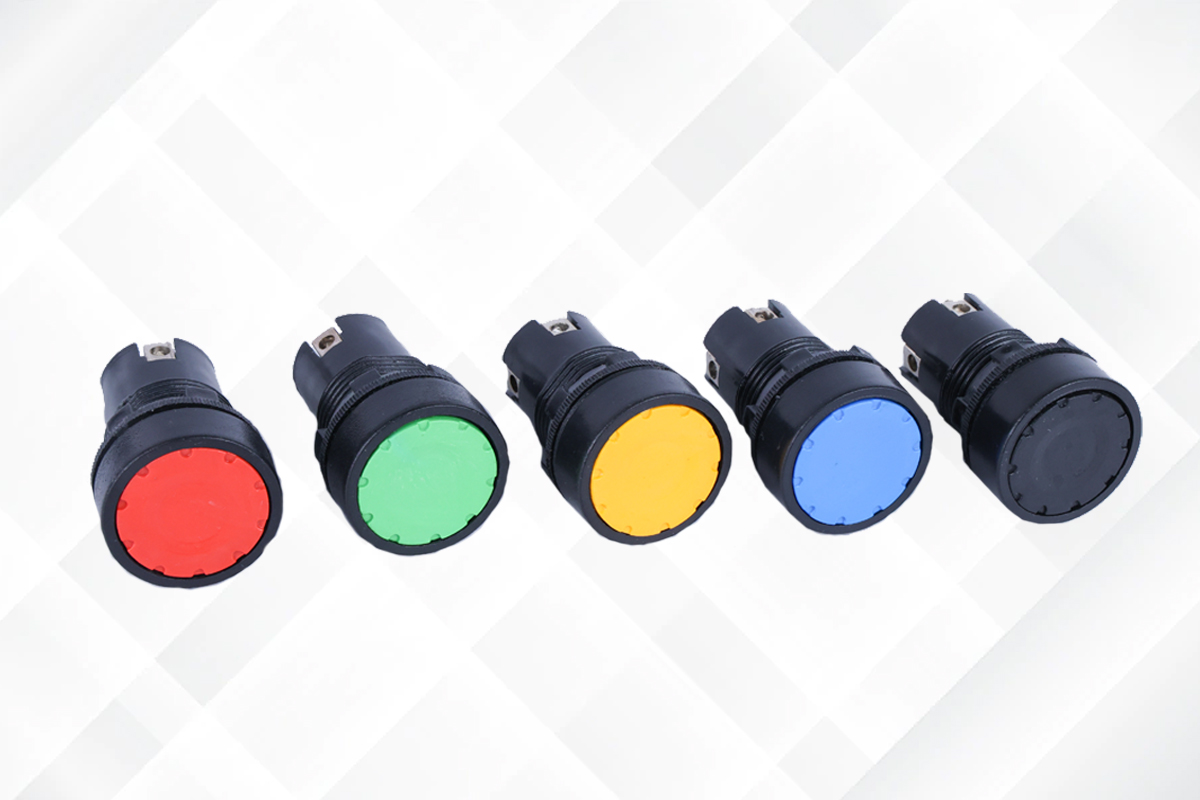

Push Buttons Introduction :

An actuator for push-to-on and push-to-off functions, or NO+NC contacts in a single switch, is a feature of SURAJ BTHF type push button switches. Acrylonitrile Butadiene Styrene (ABS) is a high-grade electrical material used for the housing. High-grade copper alloy makes up the conductor inside the switch, which can perform a wide range of mechanical and electrical tasks.

Push buttons are a type of simple switch mechanism that control certain aspects of an electronic device or machine when pressed. They are commonly used in a wide range of applications, including electronics, machinery, and consumer appliances. These switches are widely appreciated for their simplicity, reliability, and versatility.

Push Buttons Technical Specifications:

  • Operations : Push-to-ON and Push-to-Off (NO+NC)
  • Housing Material : Acrylonitrile Butadiene Styrene (ABS) plastic
  • Rated operating voltage : 250 V. AC
  • Rated and uninterrupted current : 10A
  • Ambient temperature : -10°C to 55°C
  • Rated operating frequency: 50 Hz/60 Hz
  • Rated impulse voltage : 1.5 Kv for one minute
  • Insulation resistance : >20 Mega Ω
  • Contact resistance : <20 milli Ω
  • Mechanical Life : 50,000 operations
  • Operating force : 0.8 kg (Max)
  • Housing Shade : Black
  • Button colours : Red, Green, Yellow, Blue, Black & White
  • Mounting : 22.50mm Hole dia-meter in the panel


Use of Push Buttons :

Push buttons are incredibly versatile and serve as essential control elements in many applications, from household appliances to industrial machines

1. Consumer Electronics : Push buttons power on/off devices like televisions, laptops, and smartphones, offering an intuitive way to control the device’s status. On devices like microwave ovens, washing machines, and coffee makers, push buttons allow users to select settings or initiate specific functions.

2. Industrial Applications : In factories and production lines, push buttons control machinery, allowing operators to start, stop, and reset machines quickly and safely. These large, often red push buttons are critical for safety, enabling immediate shutdown of equipment in emergencies. Push buttons in industrial setups might activate valves, conveyors, or robotic arms as part of automated processes.

3. Medical and Laboratory Equipment : Many medical devices, such as defibrillators or diagnostic machines, rely on push buttons for quick, controlled operations. Foot pedals (a type of push button) in medical settings allow professionals to operate equipment while keeping hands sterile.

4. Everyday Environments : Push buttons in buses and trains allow passengers to signal stops or open doors. Doorbells, alarm systems, and garage door openers are common examples of push-button systems in household security.


Types of Push Buttons :

Push buttons come in various types to suit different applications, each with unique functionality and design. Each type of push button is designed with specific functionality to meet the needs of different environments and uses, from simple consumer gadgets to robust industrial machinery

Momentary Push Button : Only when pressed is this kind of button operational. It reverts to its initial state after being liberated. frequently found in car horns, keyboards, and doorbells where a transient action is required.

Latching Push Button: This button stays engaged (locked) once pressed and only releases when pressed again. Power buttons on some electronic devices and appliances, as they allow for a stable on/off function.

Double-Pole Push Button : A button with two independent circuits that can both be activated by pressing a single button. Used in more complex systems where two circuits must be activated simultaneously, such as certain industrial machinery.

Illuminated Push Button : Equipped with an LED or light source to indicate when it’s active or signal other statuses. Use Cases: Common in control panels, gaming consoles, and dashboards to provide visual feedback.

Anti-Vandal Push Button : Designed to be durable and withstand rough handling or tampering, often made from metal and built with weatherproofing. Outdoor access controls, elevators, and public kiosks.
