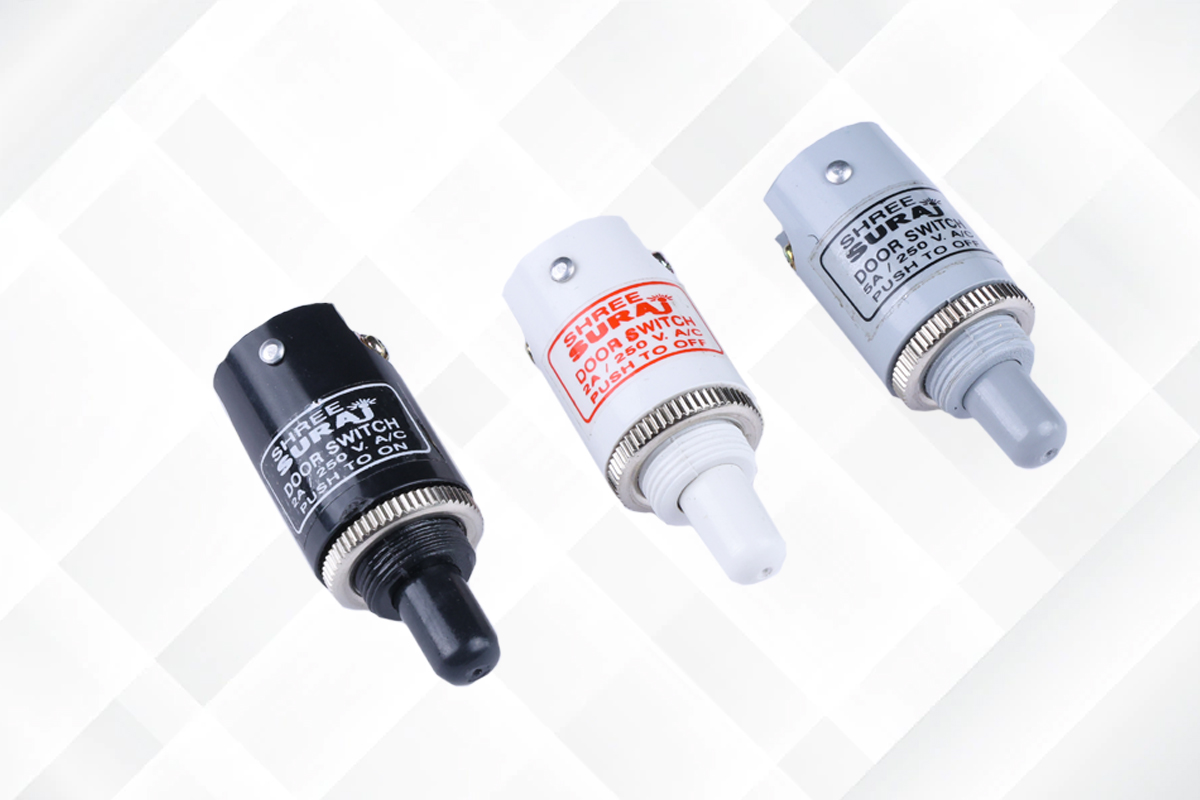

Panel Door Switches Specifications :
- Operations : Push-to-ON and Push-to-OFF
- Housing Material : Acrylonitrile Butadiene Styrene (ABS) plastic
- Rated operating voltage : 250 V. AC
- Rated and uninterrupted current : 2A and 5A
- Ambient temperature : -10°C to 55°C
- Rated operating frequency : 50 Hz/60 Hz
- Rated impulse voltage : 1.5 Kv for one minute
- Insulation resistance : >20 Mega Ω
- Contact resistance : <20 milli Ω
- Mechanical Life : 50,000 operations
- Operating force: 0.8 kg (Max)
- Housing Shade : White, Black and Grey.
- Terminations : Screw; Coated with Zinc Passivation.
- Mounting : M14 Brass and Aluminium Nuts
- Colors : White, Black & Grey

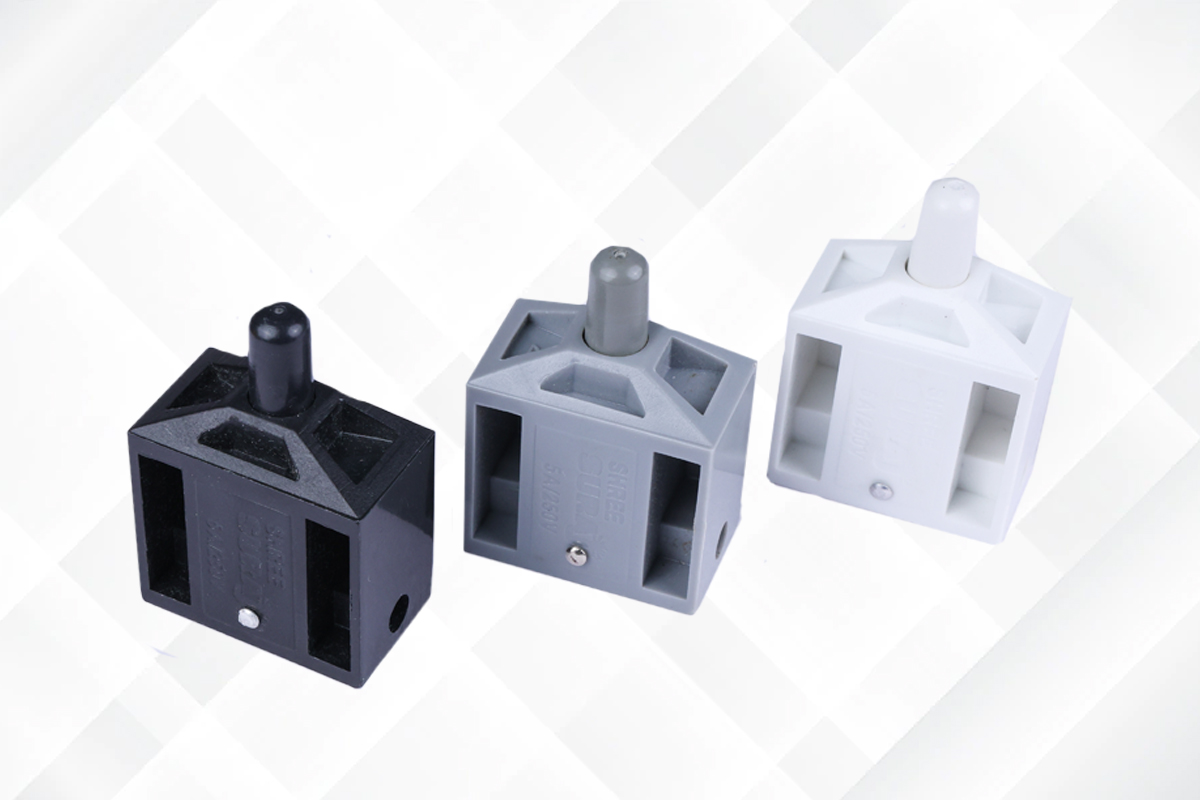

WARDROBE SWITCHES
Wardrobe Switches Specifications :
- Operations : Push-to-ON and Push-to-Off
- Housing Material : Acrylonitrile Butadiene Styrene (ABS) plastic
- Rated operating voltage : 250 V. AC
- Rated and uninterrupted current : 5A
- Ambient temperature : -10°C to 55°C
- Rated operating frequency : 50 Hz/60 Hz
- Rated impulse voltage : 1.5 Kv for one minute
- Insulation resistance : >20 Mega Ω
- Contact resistance : <20 milli Ω
- Mechanical Life : 50,000 operations
- Operating force : 0.8 kg (Max)
- Housing Shade : White, Black and Grey.
- Terminations : Touch Proof Screws; Mild Steel Coated with Zinc Passivation.
- Mounting : M3 screws on both the sides.
- Colors : White, Black & Gray
