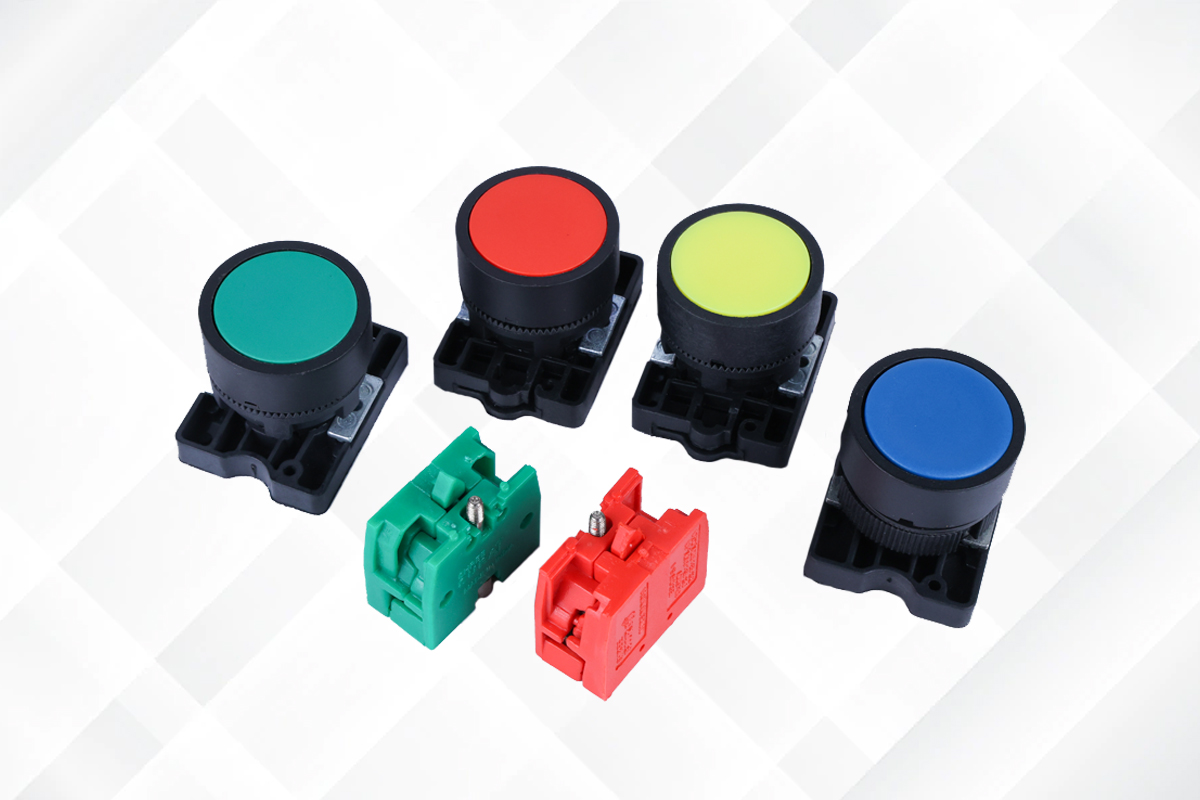

NO-NC Elements

Switches NO-NC Elements
rotary-switches

Introduction :

The NO-NC Elements are Made in India, with housings constructed from high-grade ABS plastic. The internal conductor is made from copper alloy and features silver bi-metal contacts to ensure durability and efficiency over prolonged mechanical and electrical use

Technical Specifications:

  • Operations : Push-to-ON (NO) and Push-to-Off (NC)
  • Housing Material : Acrylonitrile Butadiene Styrene (ABS)
  • Rated operating voltage : 500 V. AC
  • Rated and uninterrupted current : 10A
  • Ambient temperature : -10°C to 55°C
  • Rated operating frequency : 50 Hz/60 Hz
  • Rated impulse voltage : 1.5 Kv for one minute
  • Insulation resistance : >20 Mega Ω
  • Contact resistance : <20 milli Ω
  • Mechanical Life : 50,000 operations
  • Housing Shade : Green (NO) and RED (NC)
  • Push Button Shades : Red, Green , Yellow, Blue , Black

All the above Products Conforms to

  • IEC-60038 : Voltage Specifications.
  • EN-60998 : Connecting Devices for Low Voltage Circuits.
  • IS-5561 : Electric Power connectors.
  • BS EN IEC 61000-3-2: 2019 Electromagnetic compatibility.
  • BS EN 60204-1: 2018 Safety of Machinery. Electrical equipment of machinery.
  • (EMC). Limits. Limits for harmonic current emissions.
  • IEC 61439-1: 2020 Low-voltage switchgear and control gear assemblies - Part 1: General rules.
  • IEC 62443-4-1: 2018 Security for Industrial Automation and Control Systems - Part 4-1: Secure Product Development Lifecycle requirements.
